Resistive wire in Nichrome 90 by Wireoptim with a length of 15 meters.
Available in thicknesses of 26ga - 27ga - 28ga - 29ga: select the one you desire from the drop-down menu.
Pack of 1 piece.
Made in U.S.A.
- → Shipping from 9.90 € - info
- → Do you need help? Go to the help center
- → Phone support: +39 392 122 122 8 (Mon-Fri 9:00-12:45 / 15:00-18:00 CEST)
- → Information on warranty and assistance

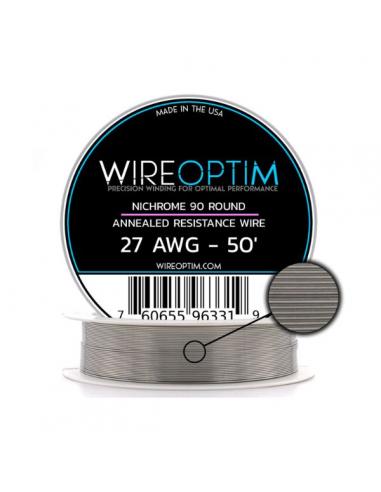

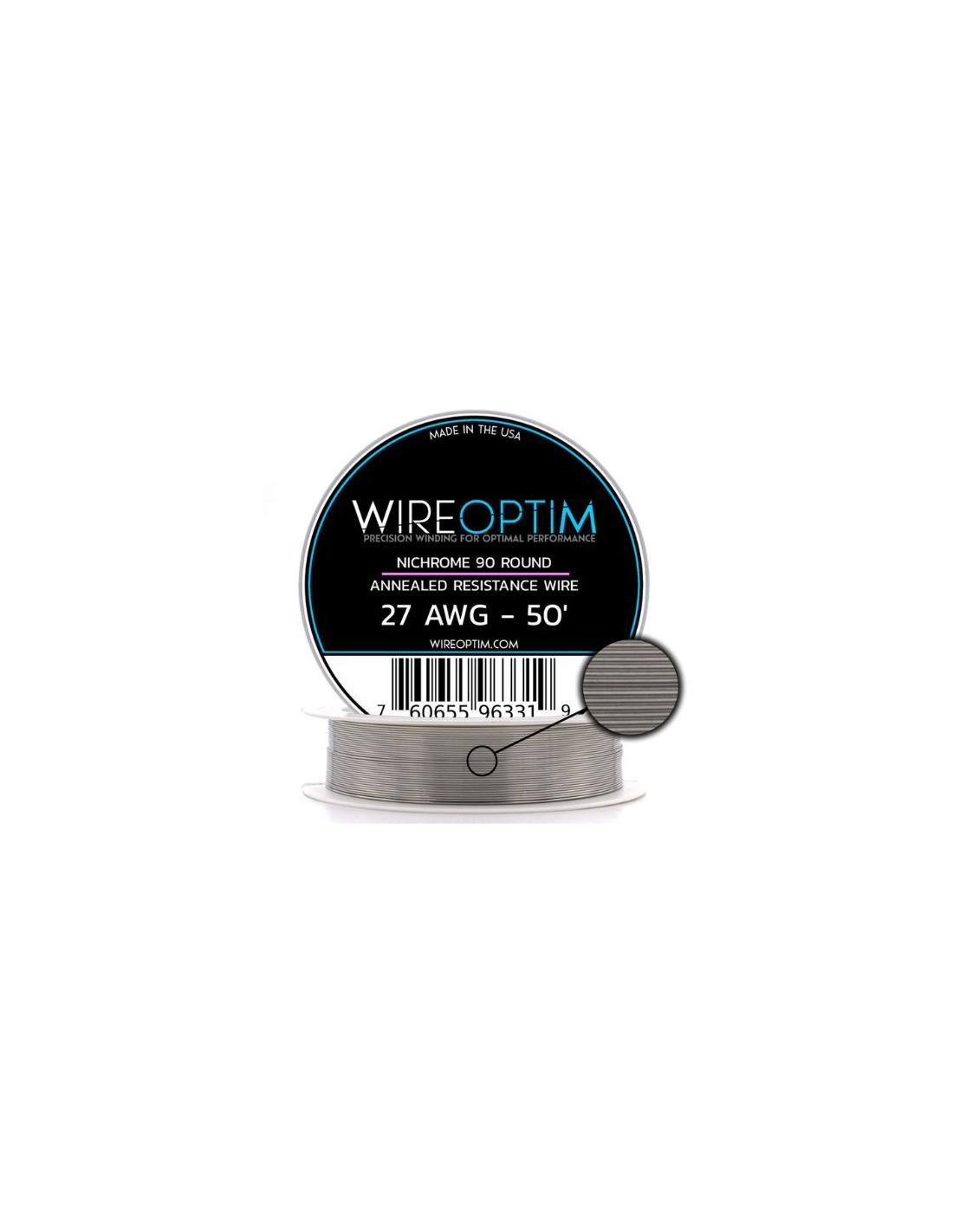

Wireoptim Nichrome 90 - 15m Resistance Wire for Rebuilding
A 15-meter spool of resistance wire made of Nichrome (Ni90) by Wireoptim, suitable for both mouth-to-lung and direct lung rebuildable atomizers (MTL - RDL / DL). It is produced in the United States using high-precision computerized machinery and is completely free from processing oils and other residues.
Available in different thicknesses:
- 26ga (0.40386 mm): linear resistance 5.38 ?/meter
- 27ga (0.36 mm): linear resistance 6.74 ?/meter
- 28ga (0.32 mm): linear resistance 8.58 ?/meter
- 29a (0.28 mm): linear resistance 10.67 ?/meter
Select the desired thickness from the menu above to add it to your cart.
Nichrome 90 is an alloy composed of 90% Nickel and 10% Chromium. It has lower resistance than Ni80 and a high melting point, as well as excellent resistance to oxidation at high temperatures. This alloy offers superior durability compared to other types of nickel wires, thanks to the excellent adhesion properties of the surface oxide.
Instructions for Use
- Cut a piece of wire of the appropriate length (10-15cm)
- Wrap it in coils using a coil jig, choosing the desired number of wraps and coil diameter
- Place the coil in the atomizer deck and tighten the legs with the appropriate attachment points
- Trim the excess wire and fill the coil with vape cotton
- Cut to size and saturate with the desired e-liquid
- Test the coil with a few activations, reassemble the atomizer, fill the tank (if present), and vape
Rebuilding Tips
Read the guides on our blog:
- Rebuilding Your Electronic Cigarette: Where to Start
- Resistance Wire for Atomizers: How to Choose the Right One for Your Electronic Cigarette
Technical Specifications
- Material: Nichrome 90 (90% Ni - 20% Cr)
- Length: 15m
- Melting Temperature: 1400°C
- Operating Temperature: 900°C
- Oxidation: highly resistant to oxidation at room temperature
- Corrosion Resistance: highly resistant to corrosion
Package Contents
- 1 x Ni90 Resistance Wire Wireoptim 15m
Buy Wireoptim resistive wires on Svapoebasta
In the shop you can find all the Wireoptim resistive wires on a spool and pre-made resistors: take a look at the complete catalog and choose the one that suits you!
- Packaging
- 1 piece
- Category
- Resistive wire
- Brand
- Wireoptim
- Difficulty
- Difficult
