326 RBA immersion rebuildable atomizer by Angry Fox Vape for cheek vaping compatible with AIO Boro and Billet Box systems.
Single coil deck with bottom feeding, 5 interchangeable airpins to adjust the airflow and manual height adjustment of the internal sky of the bell using the included allen key.
Designed and built in Italy.
(Tank not included).
- → Shipping from 9.90 € - info
- → Do you need help? Go to the help center
- → Phone support: +39 392 122 122 8 (Mon-Fri 9:00-12:45 / 15:00-18:00 CEST)
- → Information on warranty and assistance
Angry Fox Vape 326 RBA Dripping Rebuildable Atomizer for Cheek Vaping
The 326 RBA is a rebuildable atomizer for dripping by Angry Fox Vape compatible with Boro Tank on AIO and Billet Box systems. It is a high-end device for cheek vaping made in Italy with high-quality SS316L stainless steel, featuring meticulous aesthetic craftsmanship and a great customization of your vaping experience.
Thanks to the 5 different interchangeable under-coil airpins (1.1 - 1.3 - 1.5 - 1.8 - 2.5mm), it is possible to adjust the airflow to your preference. The pins are made of 18K gold-plated brass, while the insulators are made of PEEK; the pre-installed one is the 1.5mm pin. However, the same airpins are also available for purchase in stainless steel version.
An ingenious adjustment system using an included hex key allows you to raise or lower the internal chamber, effectively modulating the aromatic yield of the vapor. The maximum adjustment range is 3mm in height, which corresponds to 3 complete turns of the key (3.5mm hex key). The chamber can also be removed and replaced with the alternative Magnus and Radius chambers (not included in the package), which can be purchased separately to enjoy different aromatic yields: the original one is perfect for pure tobacco flavors, while the other two are more suitable for flavored and creamy liquids.

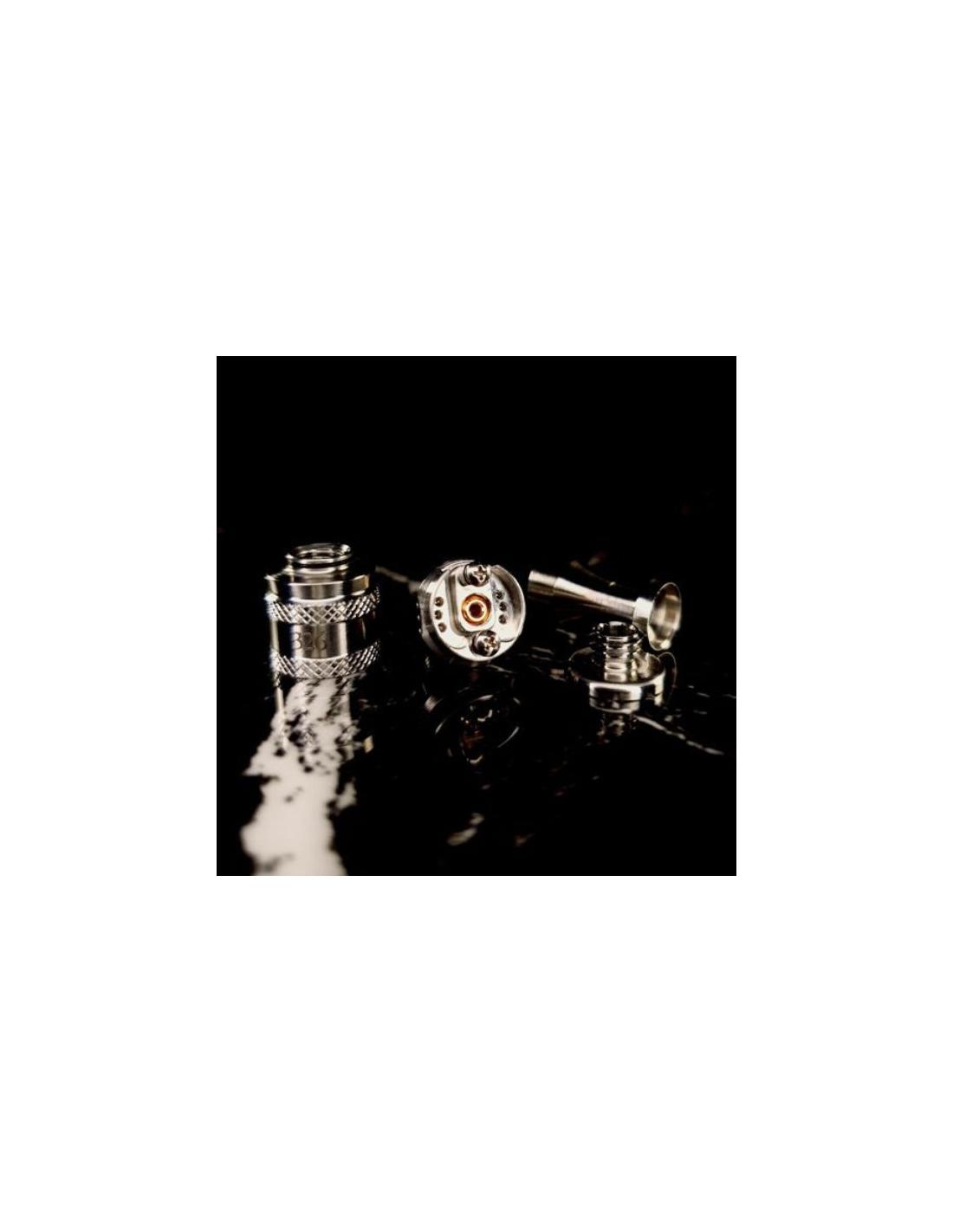

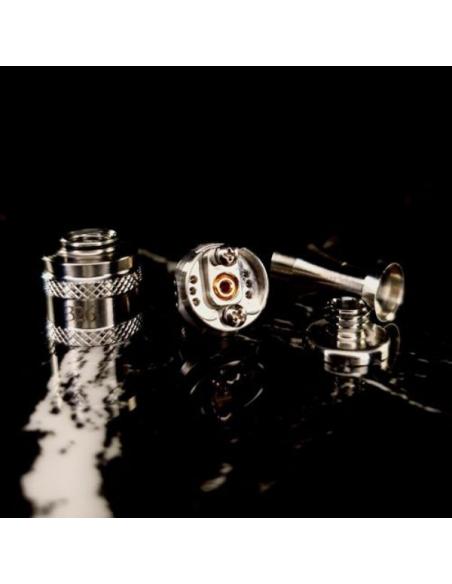

The deck structure allows for a single coil with a small inner diameter, within 2mm, and the cotton wicking is done from the bottom through six small 0.8mm holes. The coil is secured to the deck using two cross screws positioned above two posts, allowing for easy and quick rebuilds.
With its captivating design, smooth draw, and numerous available setups, this is a made in Italy creation that is definitely worth adding to your collection.
Instructions for use
- Screw the atomizer base onto a suitable stand
- Regenerate the deck with an internal diameter resistance of equal or less than 2mm
- Cotton the coil abundantly, adequately filling the two tanks, and wet it with the desired liquid

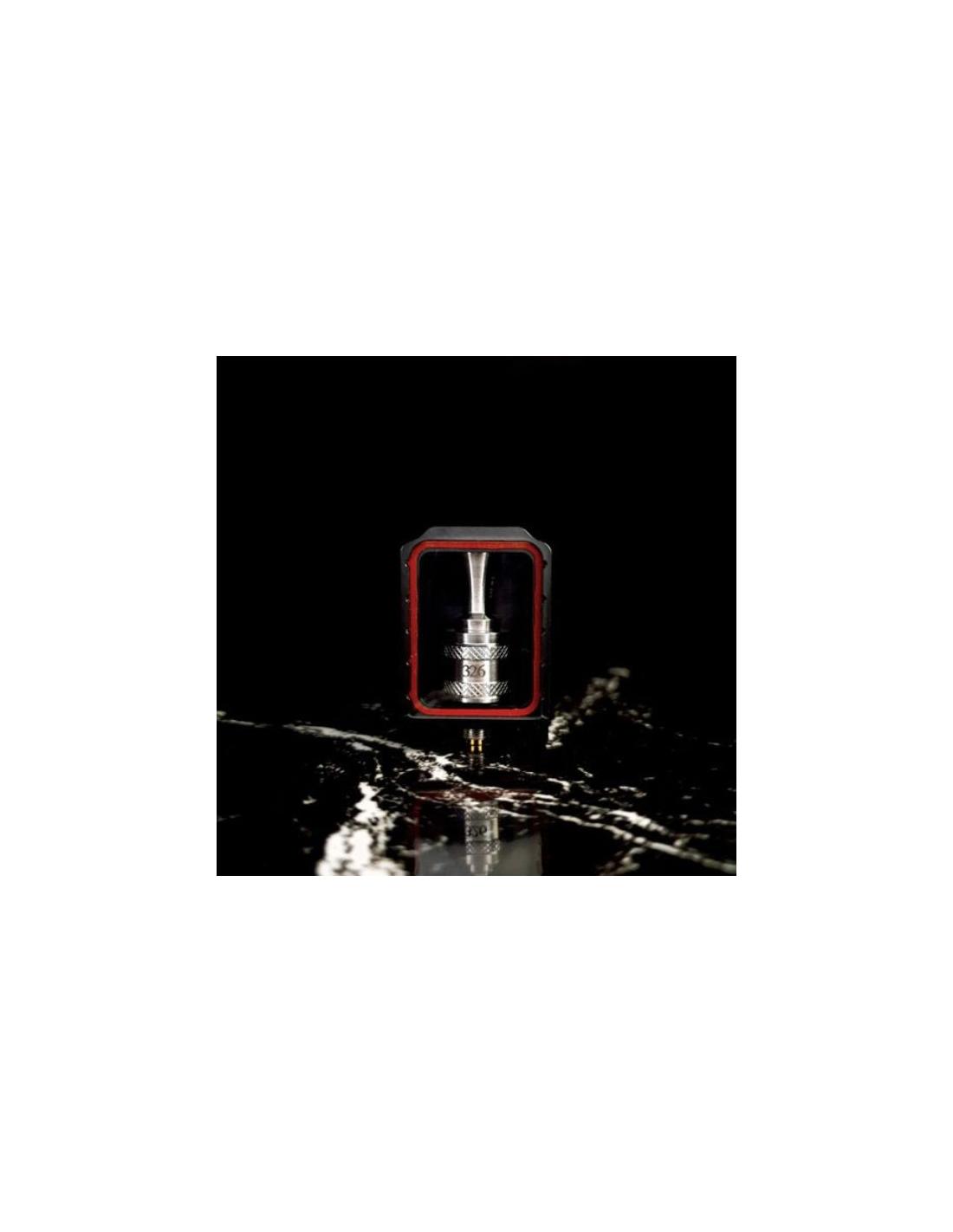

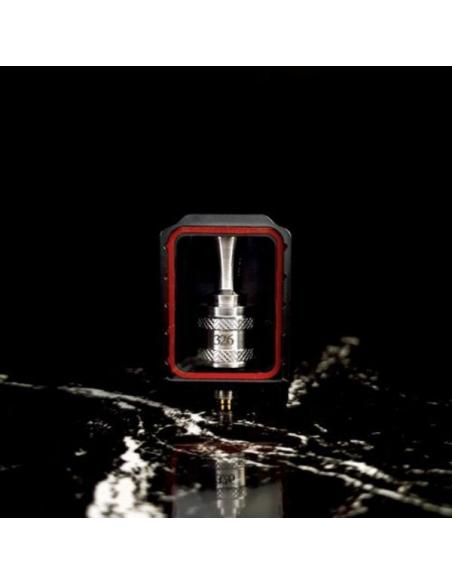

- Close the 326 RBA with the bell/chimney section and place it inside a compatible Boro Tank
- Fill the tank and close it
- Insert the complete atomizer into the electronic cigarette
- Screw on the drip tip and vape
- To replace the airpins: being threaded, simply screw or unscrew them from under the atomizer
- To adjust the height of the internal chamber: insert the Allen key into the top of the chamber and turn to raise or lower the chamber
Accessories and spare parts for 326 RBA
- Alternative Magnus and Radius bells
- INOX Airpins
- Nut AIO 326 Billet Box (510 drip tip support with atom-like designs)
- Leggenda Nut AIO 326 Billet Box (510 drip tip support with Leggenda version atom-like designs)
- 326 Drip tip
Technical specifications
- Type: immersion rebuildable atomizer for Boro Tank
- Inhalation type: cheek
- Construction materials: SS316L steel
- Dimensions: 13 × 39.5mm
- Weight: 10g
- Compatible with: Boro Tank - AIO systems like Billet Box
- Deck type: single coil
- Airflow adjustment: interchangeable fixed airflow airpins

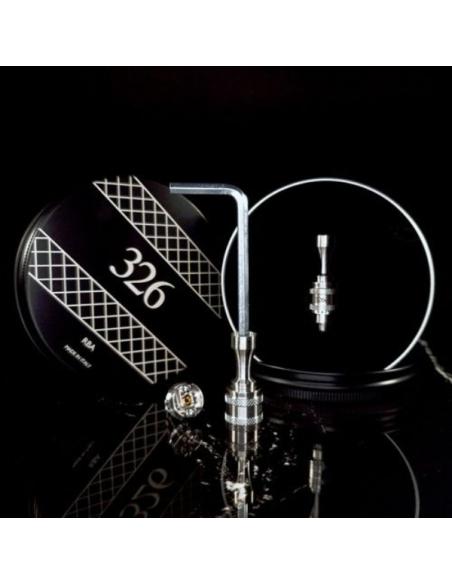

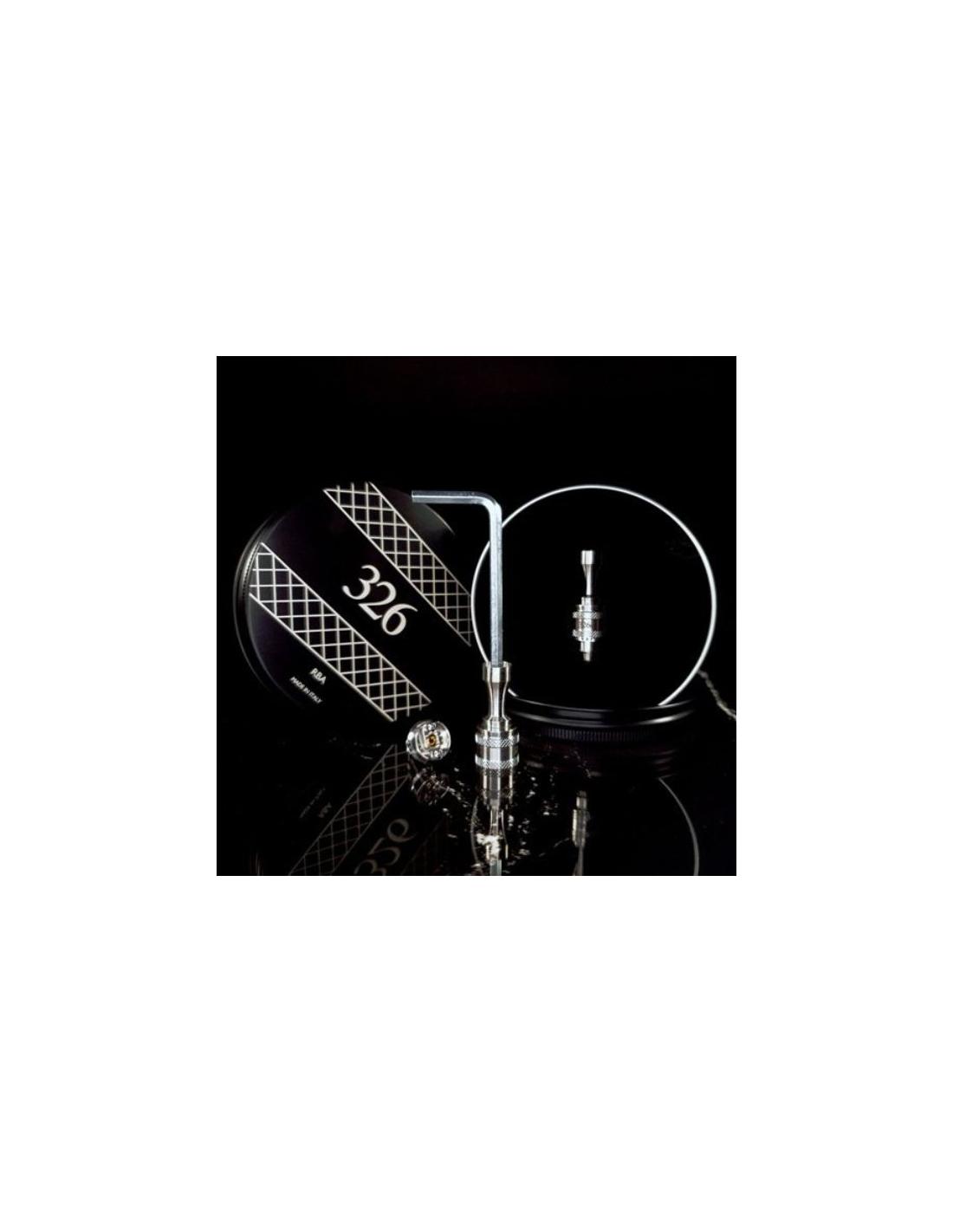

Package contents
- 1 x 326 RBA Atomizer
- 1 x 3.5mm Allen key
- 5 x Air Pins (1.5mm pre-installed)
- 1 x Spare kit
