Breakill's Spools Suprema Ratio Flavour Fused Resistant Wire for Complex Coils

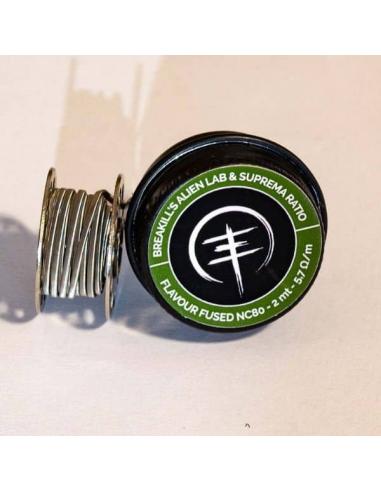

The Flavour Fused Spool coil from Breakill's Alien Lab is a spool on which 2 meters of resistant wire Clapton are wound: a bundle of Nichrome 80 wires produced by Suprema Ratio, as thin as hair, skillfully handcrafted by the Coil Builder artisan.
The result is a "braid" formed by a Core and a Wrap, to be wound in turns on a metal rod to create custom e-cigarette resistances, installable on rebuildable atomizer for Flavour Chasing (Restricted Direct Lung).
Thanks to the large surface area and the grooves in the weave, coils generated with this type of product vaporize a large amount of e-liquid, resulting in abundant, creamy clouds and superior aromatic yield compared to classic single wire builds.
Its structure allows for robust coils suitable for both single and dual coil setups. It is also possible to build a Bigass Fused for use in series on dedicated atomizers (27-30mm).
The Flavour Fused Spool wire coils guarantee maximum cleanliness thanks to the double ultrasonic cleaning they undergo after assembly (which is done manually) and the metal case in which they are supplied.
Efficient, versatile, and without any residual processing oils: the best of the best for your RBA atomizers!
Recommended Single Coil Setups
4 wraps on a 2.5mm rod = 0.35?
5 wraps on a 2.5mm rod = 0.40?
4 wraps on a 3mm rod = 0.40?
5 wraps on a 3mm rod = 0.45?
Recommended Dual Coil Setups
2 x 4 wraps on a 2.5mm rod = 0.17?
2 x 5 wraps on a 2.5mm rod = 0.20?
2 x 4 wraps on a 3mm rod = 0.20?
2 x 5 wraps on a 3mm rod = 0.23?
Recommended Bigass Dual Coil Setups
2 x 7 wraps on a 3.5mm rod = 0.33?
2 x 8 wraps on a 3.5mm rod = 0.36?
2 x 7 wraps on a 4mm rod = 0.36?
2 x 8 wraps on a 4mm rod = 0.40?
Technical Features
Draw Type: Flavour Chasing (RDL)
Material: Ni80
Linear Resistance: 5.7 ?/m
Suggested Atomizers: Restricted DL single and dual coil, RTA, RDA, some BORO RBA. Bigass coil for stacked/electronic use
Instructions for use
Cut a piece of Clapton wire to the desired length using wire cutters
Refer to the list of suggested setups to know in advance the resistance value in Ohms of the coil you want to assemble
Wrap the wire around a metal rod (coil jig) with the chosen diameter and number of wraps
Place the coil(s) on the atomizer deck
Tighten the coil legs in the designated anchor points
Cut off any excess wire with the wire cutters
Perform a few dry burns at a low wattage (half of the recommended wattage) before inserting the cotton, and make sure the coils heat up evenly (see tutorial section)
Place a generous amount of cotton inside the coils and trim it to size, positioning it properly
Moisten the cotton with e-liquid and perform a few coil activations to ensure proper functioning
Close the atomizer and refill the e-liquid (if necessary)
Maintenance: perform a dry burn (dry firing without cotton) every 15-20ml of vaporized e-liquid
Breakill's Spools Tutorial
Package Contents
1 x Flavour Fused Spool Breakill's Alien Lab 2mt
1 x Metal packaging
Buy Breakill's resistive wires on Svapoebasta
In the shop, you can find all the Breakill's Alien Lab rebuilding products: take a look at the complete catalog and choose between pre-made coils and artisanal resistive wires made in Italy!
