Bishop Cubed RBA TVGC Ambition Mods Atomizer 5ml
Ambition ModsBishop Cubed RBA high-end rebuildable atomizer by The Vaping Gentlemen Club and Ambition Mods compatible with AIO Boro Billet device.
Single coil deck with top-feed drippers, 5ml tank with side filling and interchangeable airflow for adjustable draw.
Designed in Italy.
- → Shipping from 9.90 € - info
- → Do you need help? Go to the help center
- → Phone support: +39 392 122 122 8 (Mon-Fri 9:00-12:45 / 15:00-18:00 CEST)
- → Information on warranty and assistance
Ambition Mods The Vaping Gentlemen Club Bishop³ Cubed Boro Bridge rebuildable atomizer

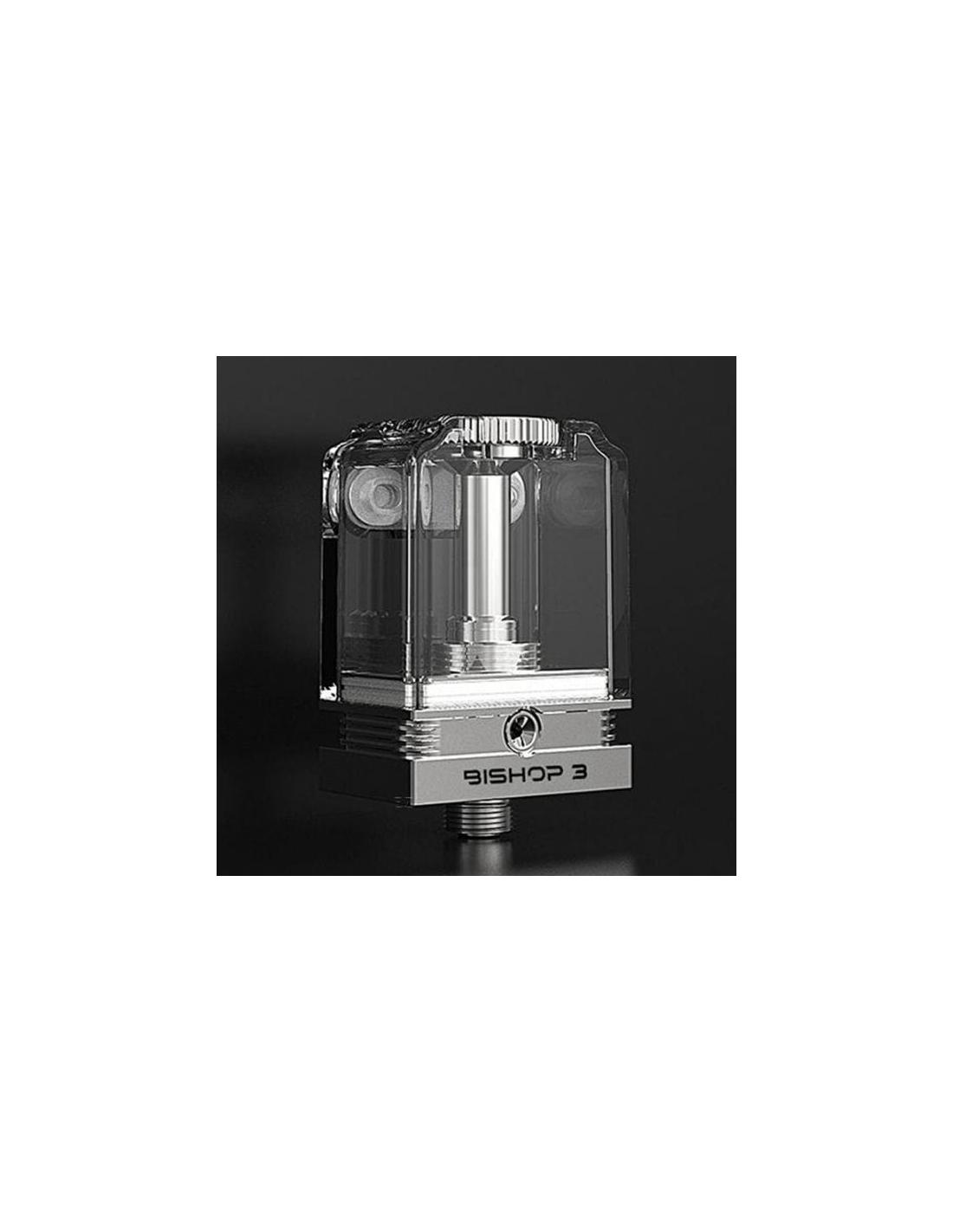

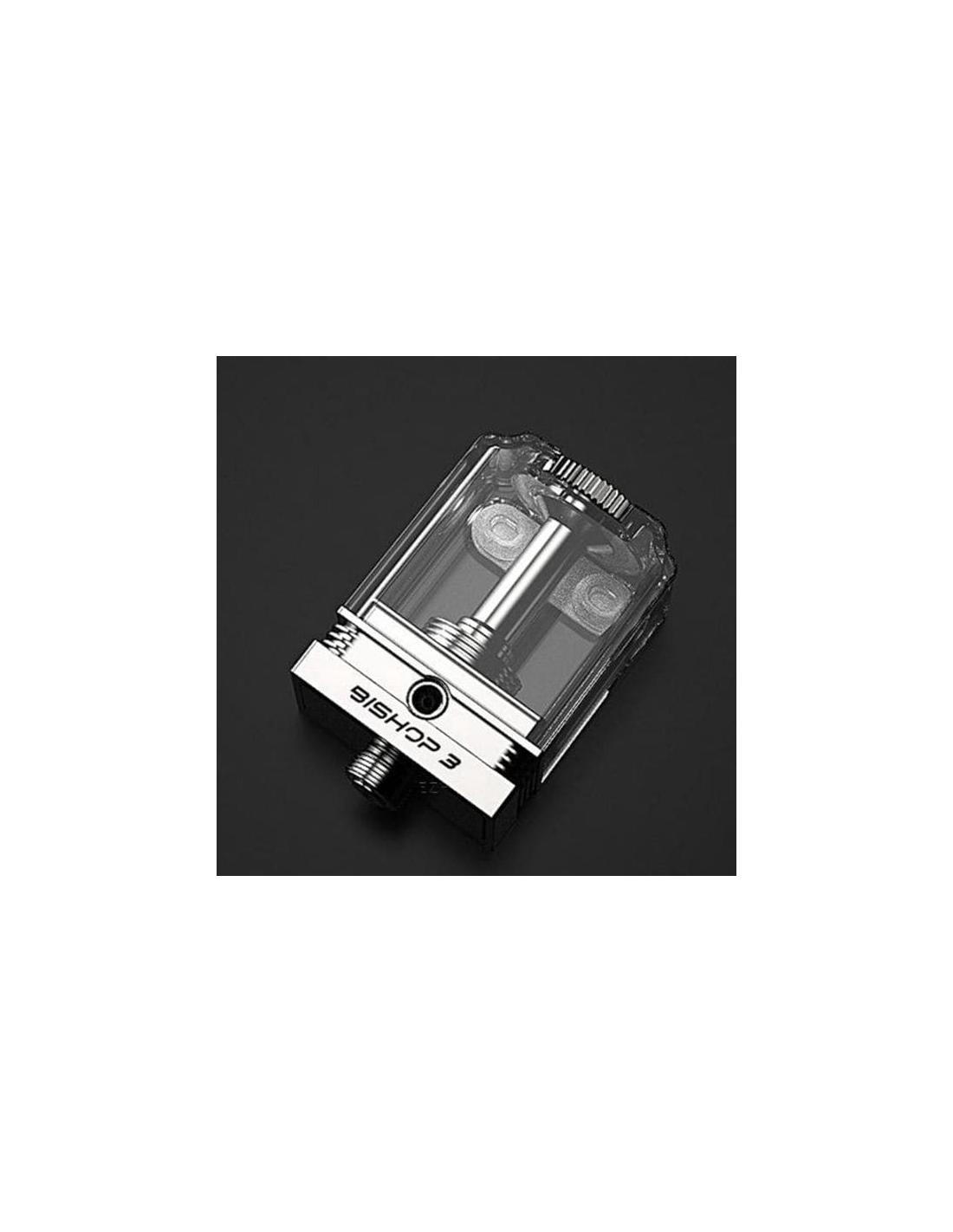

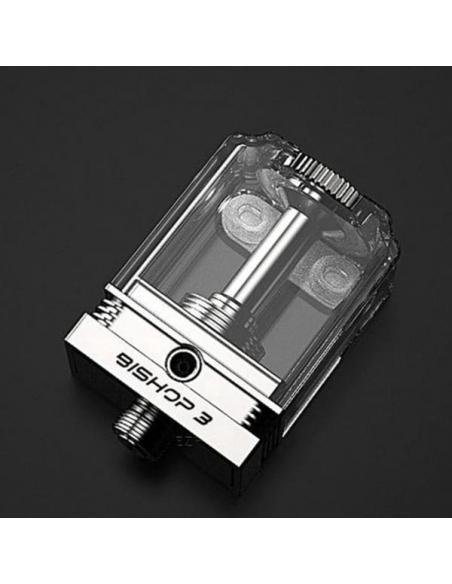

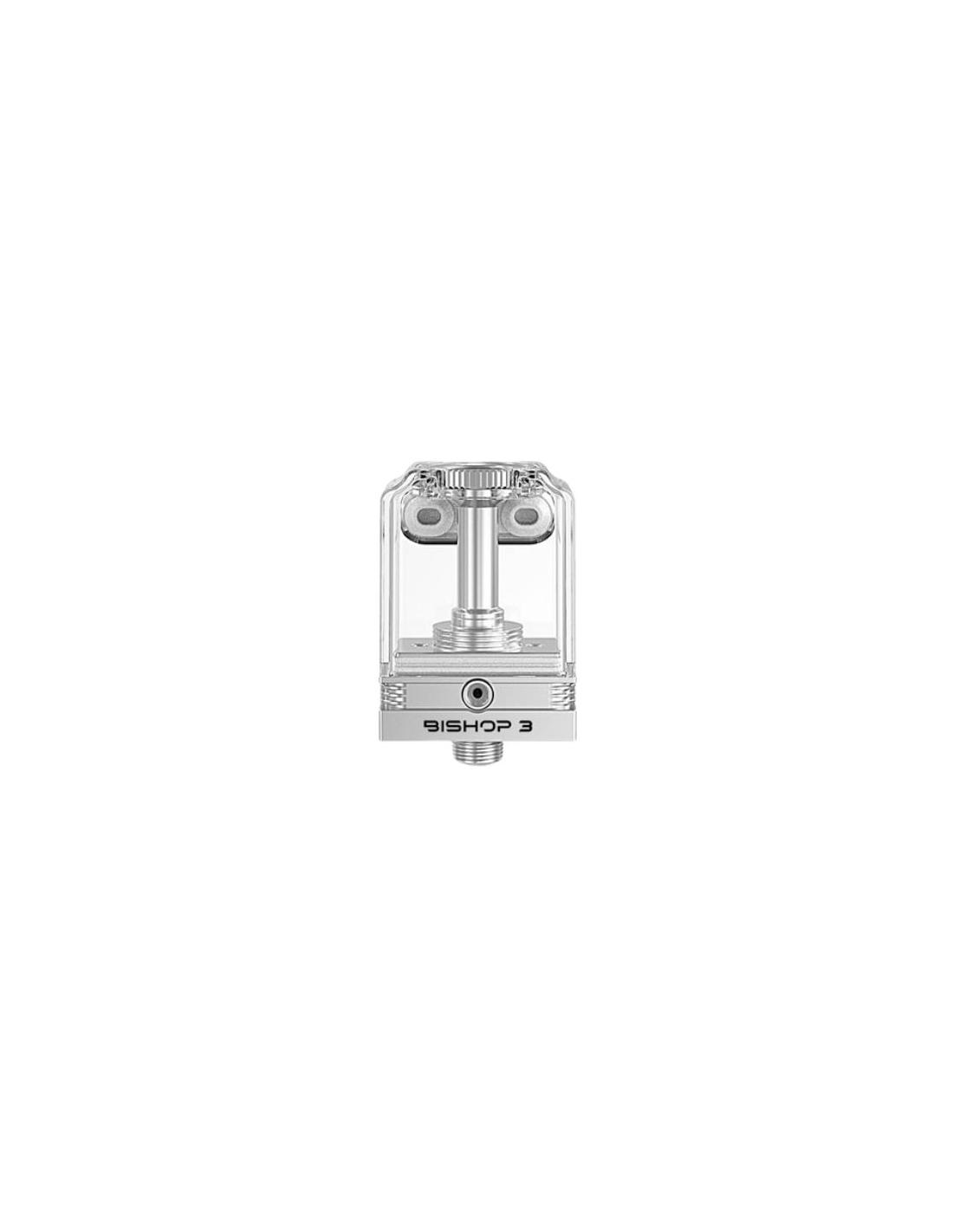

The Bishop Cubed RBA by The Vaping Gentlemen Club and Ambition Mods is a rebuildable dripping atomizer made of SS316L steel and PCTG, compatible with Billet and similar All-in-One Kits and ideal for cheek vaping and flavor chasing.
The atomizer has a 5ml tank, refillable from one side of the tank, and a 510 connector, allowing it to be screwed onto a mod or dedicated support during rebuilding operations.
The Bishop Cubed features an airflow control system identical to the Bishop RTA and the Ripley RDTA, with interchangeable pairs of side airpins with 1.2 - 1.6 - 2mm hole and blind pin. This ensures a quiet, smooth and well-contrasted draw, as rarely happens in dripping RBAs, as well as surgical customization.
Thanks to the "plug" system, the deck can be accessed even with a full tank, as the two sections are separate and independent. This allows for the replacement of airpins and the modulation of draw contrast, even after refilling.
The device features a single coil deck built along the lines of the Bishop RTA, with two slots to place the cotton, cross screws, raised fins to facilitate securing the coil legs, and two condensation liquid collection basins, also useful for ensuring better airflow inside the chamber.
The inner bell replicates the shape of the "father atomizer" and provides excellent flavor production with all types of e-liquids, especially with flavored tobaccos.
The coil is fed from the top through two fixed drippers that deliver the liquid every time you take a draw. This system, already widely patented in both TVGC atomizers and FeVs, ensures that the cotton is always well saturated with e-juice and, therefore, produces abundant vapor.
A design peculiarity is the reduced deck perimeter compared to the tank, which ensures optimal airflow to the side airpins outside the atomizer. The side grooves, in addition to their aesthetic finesse, act as heat dissipators, avoiding excessive temperatures inside the vaporization chamber.

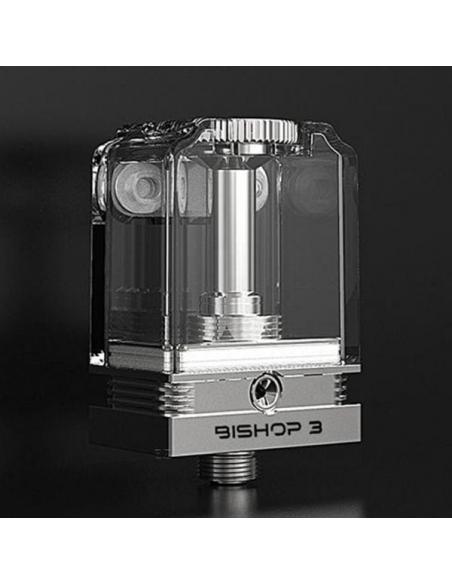

The tank is inserted into the box with a simple magnetic attachment and is compatible with all Boro AIO style devices (Billet, Chtulhu, etc.), provided they have the standard Billet internal compartment size. As it has side airflow holes, it is recommended to use a panel with an opening for closing, otherwise there may be some condensation to dry after each tank is vaped on the panel itself.
A high-end construction quality dripping atomizer, made with meticulous attention to detail and designed for a superior vaping experience on AIO devices.
Instructions for use
- Screw the atomizer base onto a box or a support with a 510 connection
- Unscrew the upper metal ring and disassemble the tank and bell/chimney section to access the deck
- Position the coil and tighten the legs with the two screws
- Insert a cotton wick inside the coil and cut it to size at the end of the side slots
- Saturate the cotton with e-liquid and perform some test activations
- Close the tank with the bell/chimney section and the upper ring
- Refill up to 5ml of liquid through one of the two side ports and close
- Insert the atomizer into a compatible AIO Boro device, attach a drip tip, and vape
- To replace the air pins: literally unplug the tank from the deck and change the air pins as desired, pushing them out of their seat with a small inward pressure from the inside of the bell
Compatible electronic cigarettes
- Ambition Mods Box 2.0
- Billet Box SXK
- Billet Box DNA 60 SXK
- Billet Box Kit
- Cthulhu Kit
- Any other compatible AIO Boro device
Technical features
- Type: rebuildable dripping atomizer (Boro)
- Inhalation type: mouth-to-lung and flavor chasing
- Construction materials: SS316L steel and PCTG
- Dimensions: 25.8 x 16.5mm
- Height: 40mm
- Liquid capacity: 5ml
- Compatible with: Billet Box and compatible Boro devices
- Liquid refill: side
- Drip tip: not included
- Connector: 510
- Deck type: single coil
- Airflow control: with interchangeable air pins for fixed draw

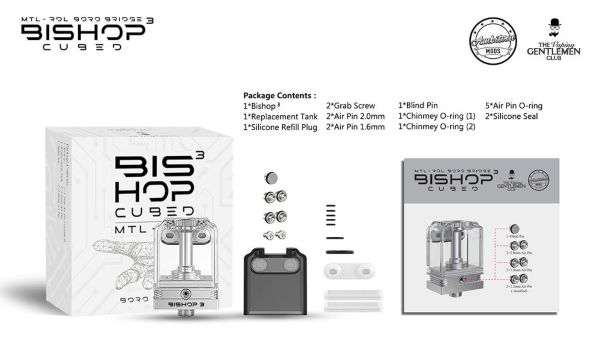

Package contents

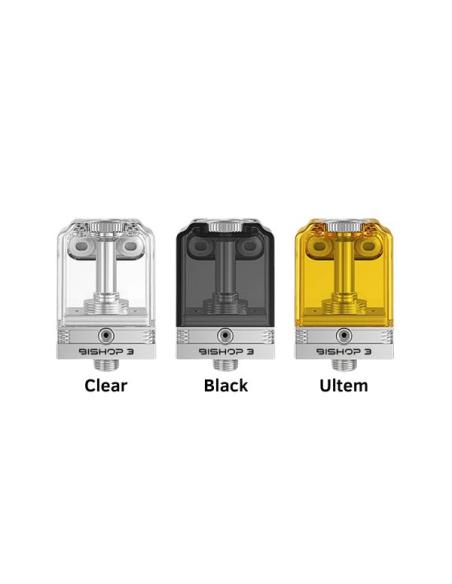

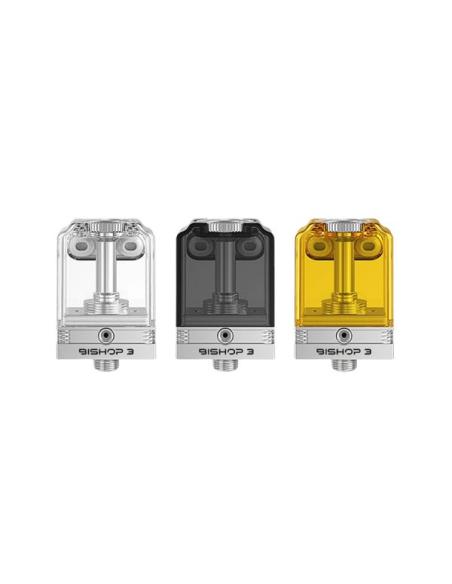

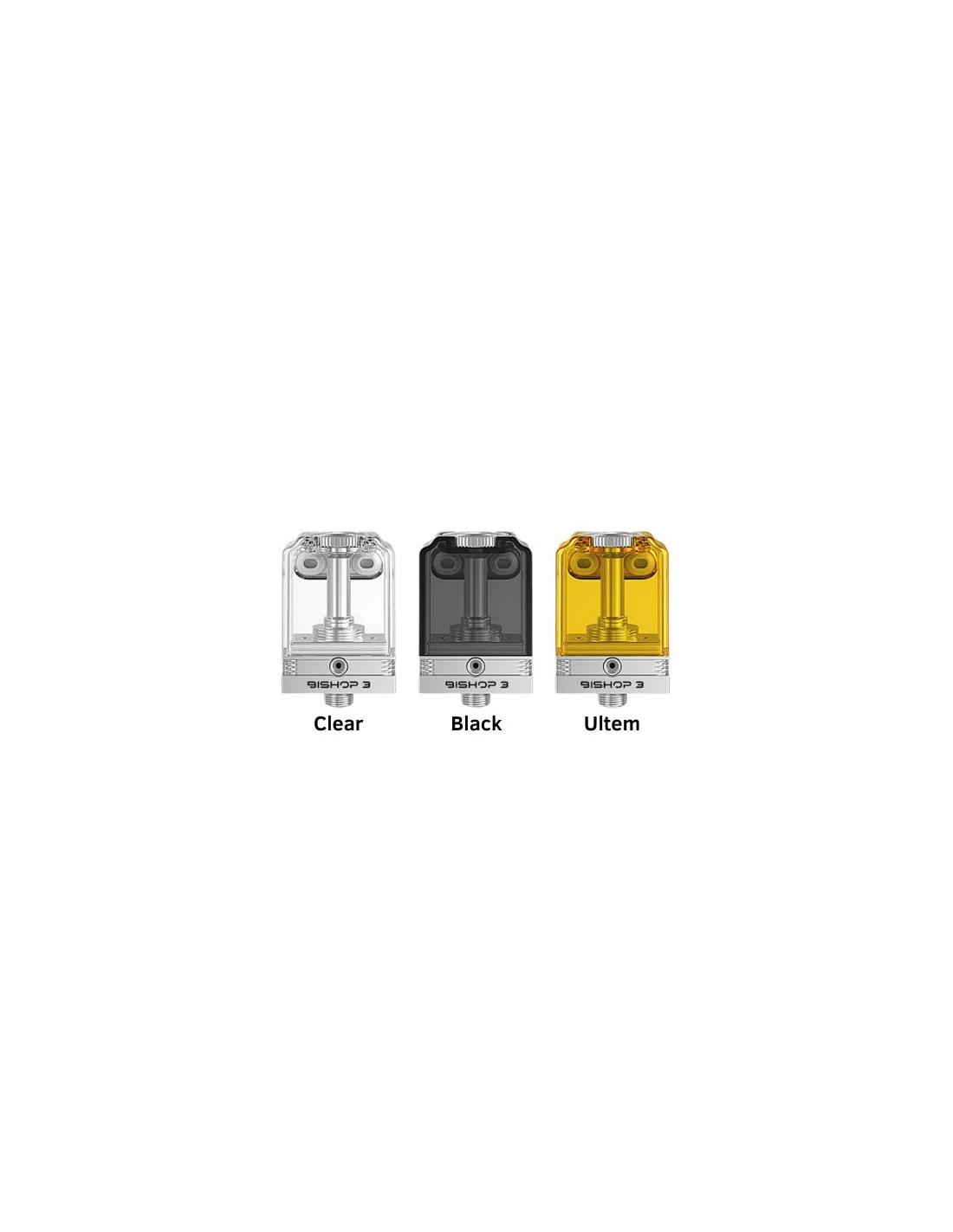

- 1 x Bishop Cubed RBA Atomizer with Transparent Tank
- 1 x Black Transparent Replacement Tank
- 1 x Closed Air Pin
- 2 x 1.2mm Air Pins (pre-installed)
- 2 x 1.6mm Air Pins
- 2 x 2.0mm Air Pins
- Various spare parts
