Wotofo Profile PS Dual Mesh RDA electronic cigarette atomizer
The Profile PS Dual Mesh RDA by Wotofo is a 28.5mm lung atomizer that works with two mesh coils installed simultaneously, ensuring monstrous vapor production. It can also be used in both series and parallel configurations using the included pins (both available in both BF and non-BF versions).

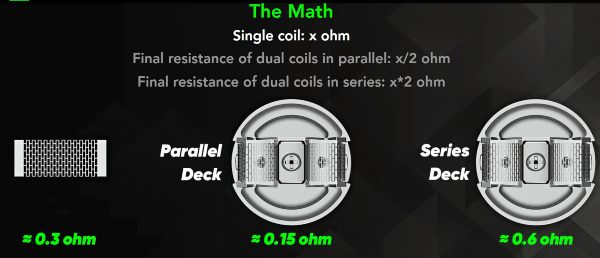

To achieve a very low resistance value and therefore vape at high wattages, it is necessary to use the parallel connection pin for the two 0.3? mesh coils included in the package (0.15 Ohm total). For a higher resistance value, simply use the series connection pin (0.6 Ohm total). The recommended power range is 30-40W. The atomizer is compatible with all coils in the Profile series.

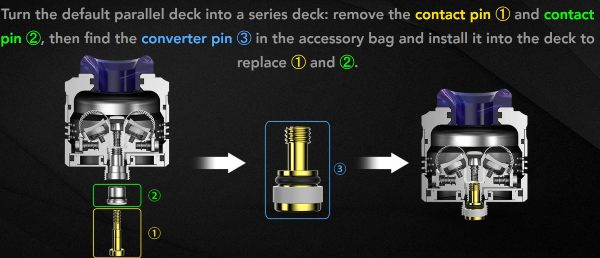

The non-BF (RDA) pin for parallel vaping is pre-installed in the atomizer: to switch to series connection, simply remove the gold pin (using the Allen key) and its stainless steel support and replace them with one of the two pins with insulator (see image below).
The juice wells are very deep and can hold up to 3ml of e-juice, as well as the large amount of cotton needed to fill the two mesh coils. The package includes two pre-cut cotton wicks (with an inner diameter of 6mm) for the initial build.
The airflow is adjustable by rotating the top cap, which gradually opens a series of small holes arranged in a classic honeycomb pattern, allowing for precise airflow adjustment and a smooth and silent draw. The beautiful 810 resin drip tip has a large internal bore and can be replaced with any other drip tip if desired.
Sparkling, easy to build, and capable of producing thick clouds: the ultimate choice for lung vapers.

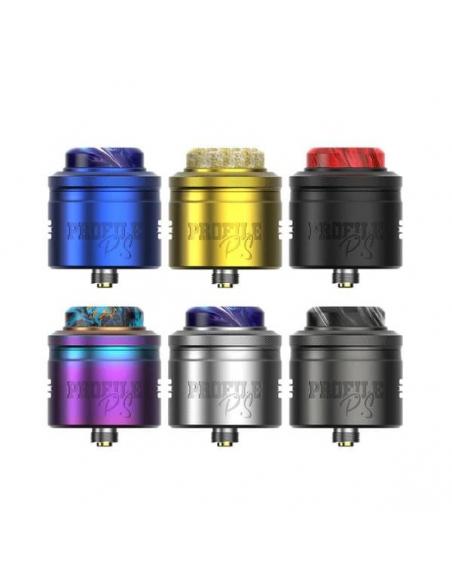

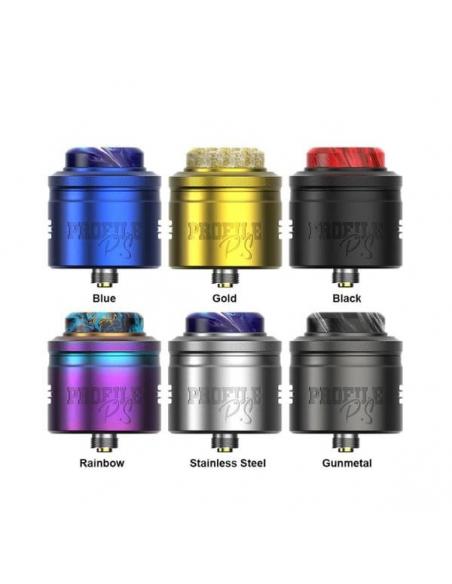

Available in various attractive colors.
Instructions for use
- Bend the two included meshes around a cylindrical object and install them inside the deck, tightening the cross screws
- Insert the two cotton wicks under the two meshes, cutting and trimming them as needed, and position the ends in the liquid wells

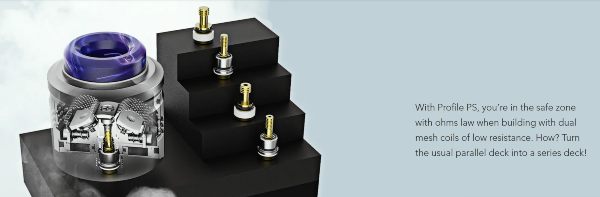

- Blind pin (RDA) for parallel vaping pre-installed in the atomizer: if you want to replace it, unscrew the golden pin and its metal support and replace them with the desired one
- Saturate the cotton with the desired e-liquid
- Place the top cap over the deck and assemble the drip tip
- Vape
- To adjust airflow: rotate the top cap using the knurled part

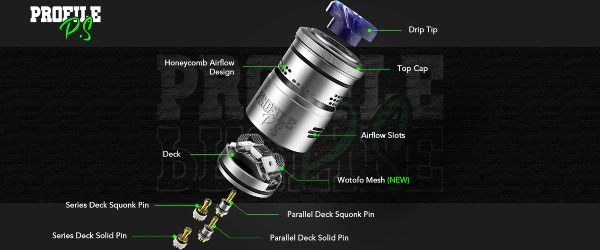

Accessories and spare parts for Profile PS Dual Mesh RDA atomizer
Technical specifications
- Type: mesh atomizer
- Draw type: lung
- Materials: stainless steel, PEEK, and resin
- Diameter: 28.5mm
- Height: 35.5mm (with drip tip and pin)
- Liquid capacity: 3ml
- Liquid refill: dripping
- Drip tip: 810
- Connector: 510

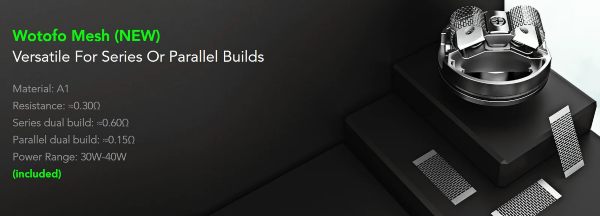

- Included coils: 0.3 Ohm

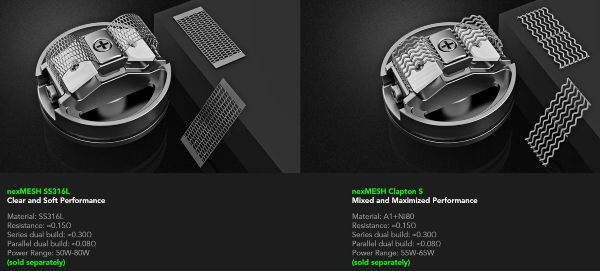

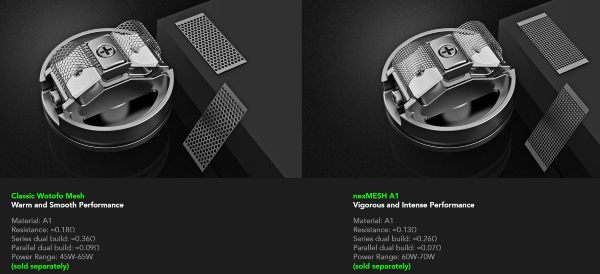

- Compatible coils: Wotofo Mesh coil (Classic 0.18? - KA1 0.13? - SS316L 0.15? - Clapton S 0.15?)
- Airflow control: yes, honeycomb

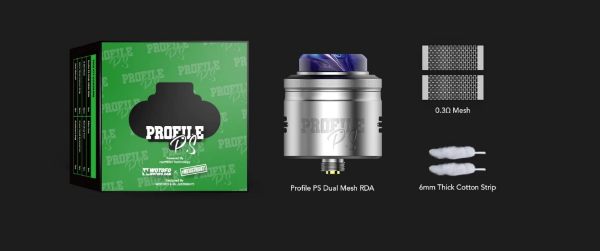

Package contents
- 1 x Profile PS Dual Mesh RDA atomizer
- 2 x New Mesh Coil 0.3?
- 2 x Pre-cut cotton wick
- 1 x Mesh bending tool
- 1 x Cross-head screwdriver
- 1 x Hex key
- 1 x Spare parts bag
- 1 x User manual
