Sentinel RDA rebuildable dripping atomizer with bottom feeding system, 22mm diameter, made by Kindbright for both mouth to lung and direct lung vaping.
Single coil deck, adjustable top airflow, 810 drip tip, 510 drip tip with adapter, squonk pin and bottom feeder capability.
- → Shipping from 9.90 € - info
- → Do you need help? Go to the help center
- → Phone support: +39 392 122 122 8 (Mon-Fri 9:00-12:45 / 15:00-18:00 CEST)
- → Information on warranty and assistance
Kindbright Sentinel RDA BF rebuildable atomizer for electronic cigarette

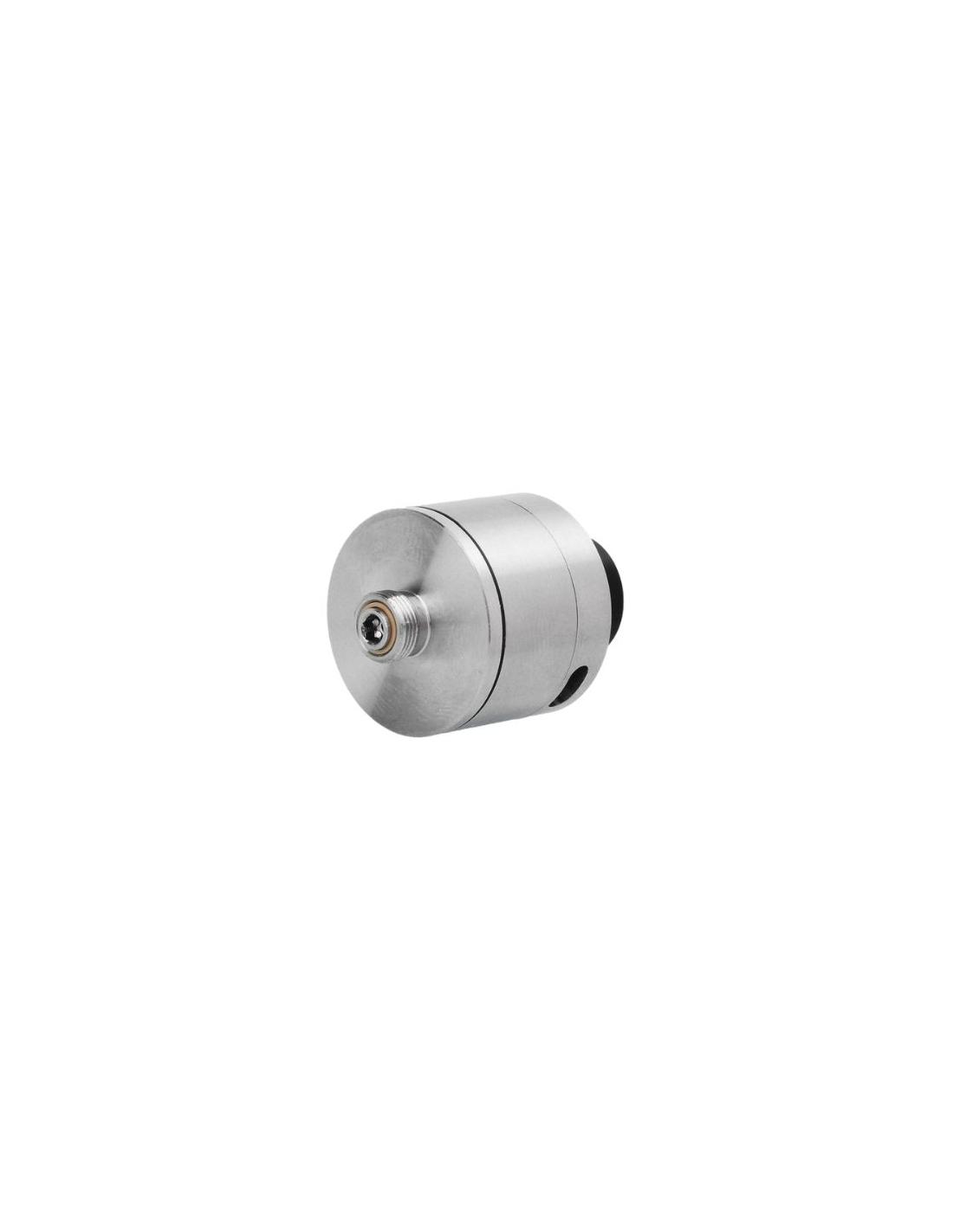

The Sentinel RDA by Kindbright is a rebuildable atomizer with a diameter of 22mm and a 510 connection, can be used as a dripper with the standard pin or as a Bottom Feeder with the included BF pin. What sets it apart from other atomizers is the unique design of its single coil deck with adjustable top airflow through the AFC ring, designed to customize coil positioning based on whether it is used in cheek or lung configuration.

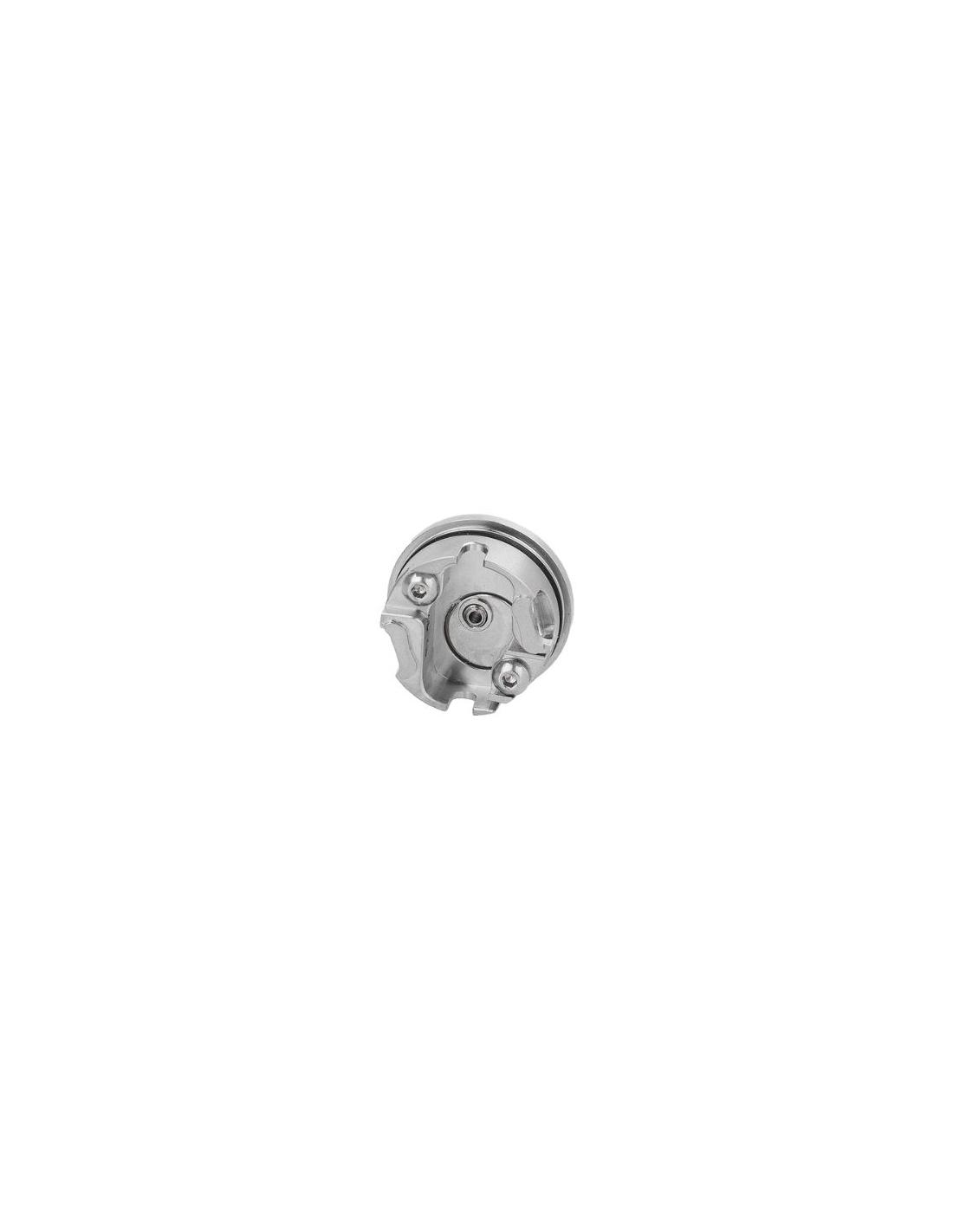

The two posts feature hexagonal head screws at the top, allowing the resistance to be positioned at different heights compared to the 4 (two on each side) airflow holes leading to the vaporization chamber. If using a low-resistance lung coil, it is recommended to position it lower, while with MTL coils it is suggested to place them parallel to the airflow holes.
The bell-shaped top cap has two notches on the inside that guide its correct placement above the deck, directing the airflow to the aforementioned holes. The flared top section of the atomizer features the inlet hole, which can be partially closed off when installing the AFC ring for adjusting the draw. The standard cap fitting allows for the use of an 810 drip tip, but using the included adapter, a 510 drip tip can also be used.
This allows for maximum customization of the vaping experience, choosing the preferred coil and adjusting all the components of the device accordingly for that specific setup.
Overall, it is a well-crafted BF atomizer with a pleasantly "metallic" feel that offers excellent flavor production with all types of e-liquids and great versatility that is hard to find in models of its category.
Instructions for use
- Screw the atomizer base onto a box with a 510 connection: if you want to use a Bottom Feeder mod, install the included BF pin on the device
- Install a coil in the deck, tightening the legs with the screwdriver
- Insert the cotton inside the coil and place the ends on the bottom of the deck, filling the two wells properly
- Drip e-liquid onto the cotton and perform some test activations
- Place the bell on the deck and the AFC ring for airflow control, adjusting it to your preference based on the installed coil
- Choose whether to insert the 810 or 510 drip tip (use the included adapter in the latter case)
Technical specifications
- Type: rebuildable dripper/BF atomizer
- Inhalation type: mouth-to-lung (MTL) and direct lung (DL)
- Materials: stainless steel
- Diameter: 22mm
- Height: 24.5mm
- Liquid refill: dripping or bottom feeding
- Drip tip: 510 - 810
- Connector: 510
- Deck type: single coil
Package contents
- 1 x Sentinel RDA deck
- 1 x Sentinel RDA bell
- 1 x 810 drip tip
- 1 x 510 drip tip
- 1 x 510 drip tip adapter
- 1 x BF pin
- 1 x Spare parts
- 1 x Instruction manual
