Lithium Batteries Sony VTC5 18650 2600mAh 25A Certified Must500

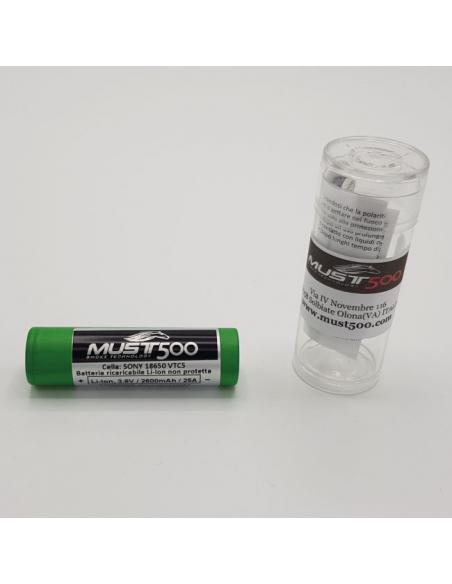

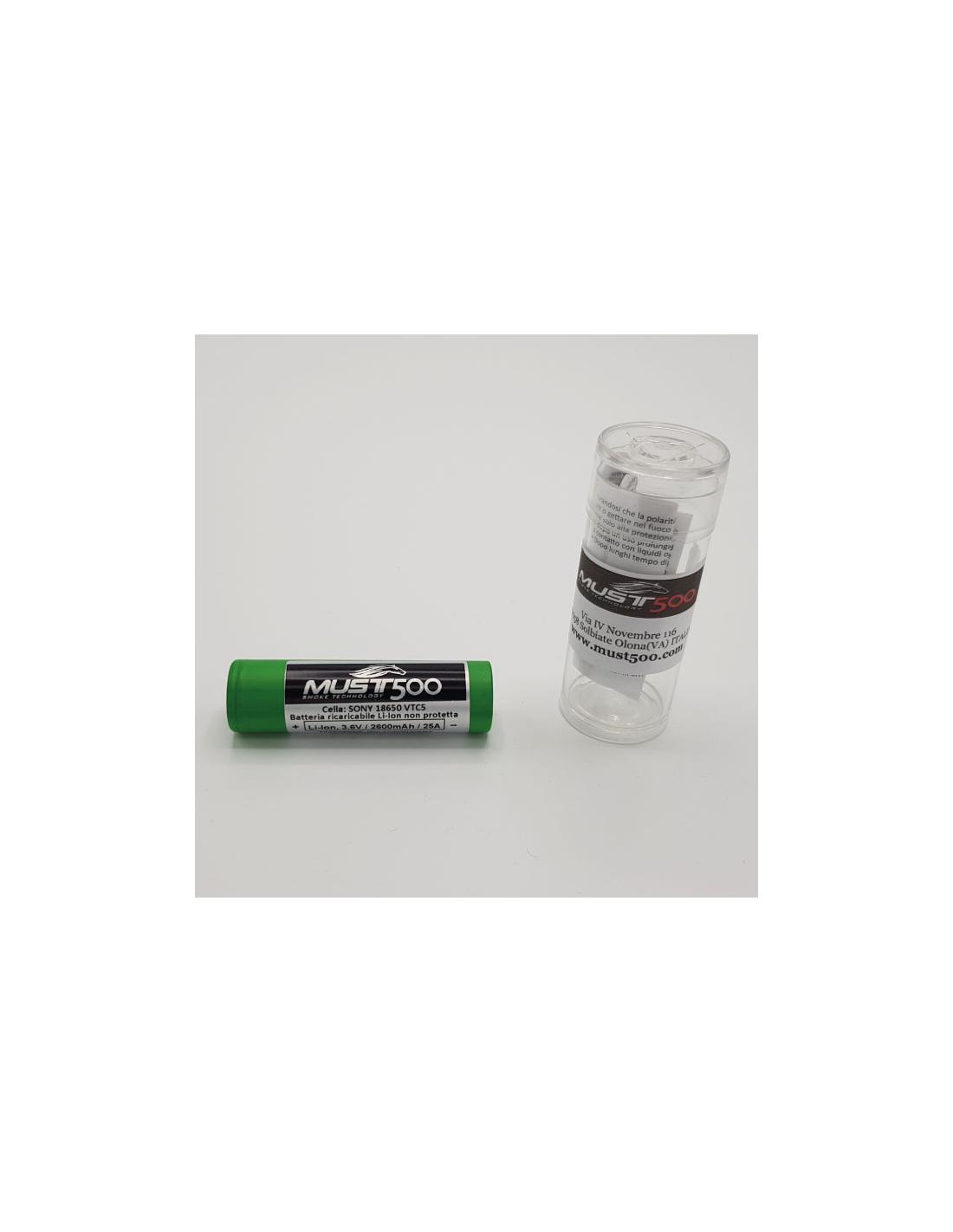

The Must500 batteries with Sony VTC5 2600mAh 25A cells are assembled, certified, and packaged in Germany.
Batteries tested and certified in Germany.
These batteries have been tested and certified in Germany, they are Grade A cells, selected to maximize the parameters of each cell such as capacity, internal resistance, and nominal voltage.
The cells are recently manufactured and are used by brands such as Dyson, Tesla, and Bosh for the battery packs of their products.
The label on the battery is made of polyester and can withstand a maximum temperature of 149°C for up to 24 hours and a minimum temperature of -40°C for 72 hours.
The labels on the battery display the data required by CE regulations, such as:
Model: (e.g. 18650)
Battery Type: non-protected rechargeable lithium battery (the internal PCB must be present on the BOX MOD)
Poles (+ and -)
Voltage, capacity, and continuous discharge
Essential warnings
Symbols: trash bin (indicating that they should be disposed of in appropriate containers), recycling (indicating that they should be recycled), and CE to indicate that the battery is CE certified (meaning that it is packaged and labeled as required by CE regulations)
Each box contains a leaflet with safety warnings and indications of devices where it can be used.
SONY US18650VTC51 2600mAh 25A last twice as long as other batteries on the market and have a constant power output.

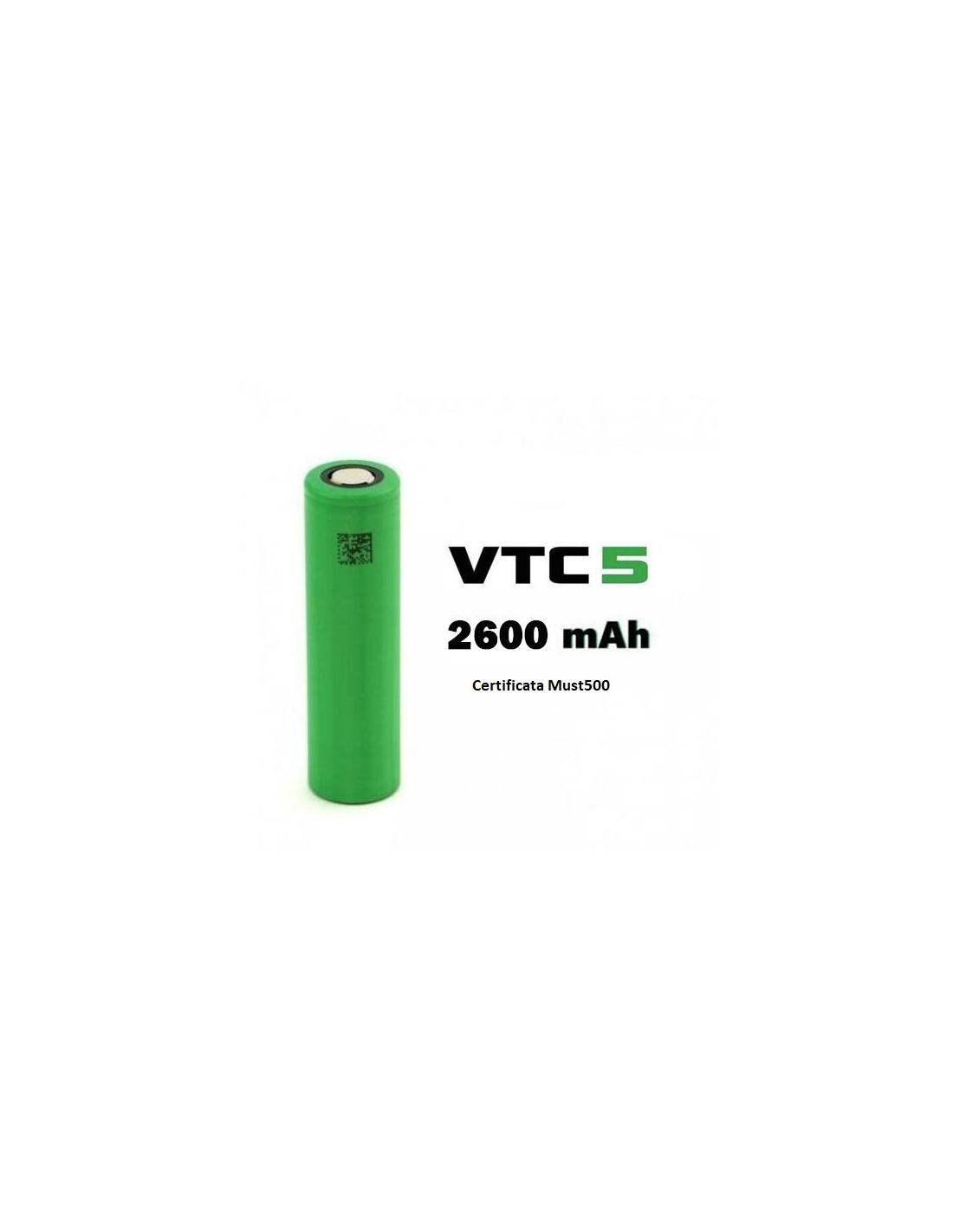

Sony US18650VTC5 3.6V 2600mAh 25A High Drain Hybrid IMR rechargeable battery Flat Top. The Sony US18650VTC5 is a high load IMR hybrid battery rated at 2600mAh with a maximum continuous discharge rate of 25A. It is suitable for use in high power applications such as mechanical mods with low ohm resistances. This hybrid IMR has safe chemistry but does not have a protection circuit (PCB). It must be charged with a high-quality 4.2V Li-ion charger (XTAR, Pila, Efest). Do not discharge this hybrid IMR battery below 2.5V.
Price for a single battery.
This Sony hybrid IMR battery has lower internal resistance than a normal 3.7V Li-Ion battery and can end up with a higher final voltage when applied in some chargers. Check the voltage of this hybrid IMR battery with a digital multimeter to ensure that the charge level does not exceed 4.25V. Do not use the charger if the battery is fully charged. Overcharging this hybrid IMR battery above 4.25V can shorten its life/cycles. Overcharging this hybrid IMR battery above 4.50V can damage it.
Features:
- Length: 65.2 millimeters (+/- 0.05 mm)
- Diameter: 18.45 millimeters (+/- 0.05 mm)
- Positive: Flat Top
- Nominal Voltage: 3.6V
- Nominal Capacity: 2600mAh
- Internal Impedance: 13.5 Milliohms
- Standard Charging Method: CC/CV
- Standard Charging Current: 2.5
- Maximum Charging Current: 4A
- Maximum Allowed Charging Voltage: 4.25V
- Maximum Continuous Discharge Current: 25A
- Minimum Allowed Discharge Voltage: 2.5V
- Cycle Life: > 500 cycles
- Cell Weight: 44g average, 46.5g max
