Essential Mod Reload Vapor USA Electronic Tube 24mm
Reload Vapor USAEssential Mod electronic tube* by Reload Vapor USA.
Single battery device 18350-18650 (batteries not included) with a diameter of 22mm (24mm with the interchangeable sleeve) and 510 connection.
Made in USA.
*Illustrative photos: atomizer not included
- → Shipping from 9.90 € - info
- → Do you need help? Go to the help center
- → Phone support: +39 392 122 122 8 (Mon-Fri 9:00-12:45 / 15:00-18:00 CEST)
- → Information on warranty and assistance
Reload Vapor USA Essential Mod Electronic Tube 18350-18650
The Essential Mod electronic tube by Reload Vapor USA is an elegant, functional, and versatile device that stands out in the market at its selling price.
The device is made of stainless steel and has a base diameter of 22mm, but it can accommodate atomizers up to 24mm in diameter without overhang, thanks to the included colored sleeve. The connection is a universal 510.
The mod can be powered in two ways:
- 18650 Battery: fully assembled tube with additional sleeve; can be used without sleeve (22mm) or with sleeve (24mm)
- 18350 Battery: assembled tube without sleeve, with a diameter of 22mm
Depending on the e-cigarette battery (not included) you insert, the battery life will vary. It is also possible to recharge the battery internally using a USB-C port.
Thanks to the installed chipset, by clicking the Fire button 3 times, you can adjust the power to 3 levels:
- Green LED: 4.2-3.5V
- Blue LED: 3.5-3.2V
- Red LED: 3.2V
If the LED flashes 3 times in a row, it means that the atomizer has not been detected. If it flashes 2 times, it indicates a short circuit, and if it flashes 4 times, it means that the battery needs to be recharged. The circuit can read resistances ranging from 0.1 - 3 Ohm and includes all the necessary protections for safe vaping: reverse polarity, undervoltage and overvoltage, high resistance, overheating, short circuit, and 10-second cutoff in case of issues.
Available in various colors.
Instructions for Use
- Open the bottom door of the mod and insert a 18650 or 18350 battery (to be purchased separately) depending on the version you want to use
- Screw an atomizer with a 510 connection, properly filled with liquid and with a resistance greater than 0.1 Ohm
- Turn on the device by clicking the Fire button 5 times
- Select one of the available power levels (low, medium, or high) by clicking the button 3 times in a row
- Vape by pressing the button
Technical Specifications of the Essential Mod
- Construction materials: steel
- Short version dimensions 22mm: 55 x 22mm
- Long version dimensions 22-24mm: 85 x 22-24mm
- Long version weight: 94g
- Power range: 3.2-4.2V
- Battery type: removable 18350 or 18650 (not included in the package)
- Connector: 510
- Charging port: USB-C
- Display: not present

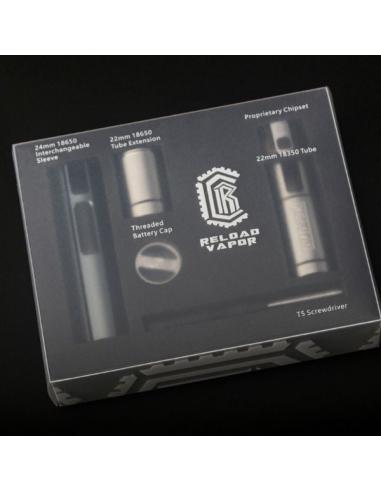

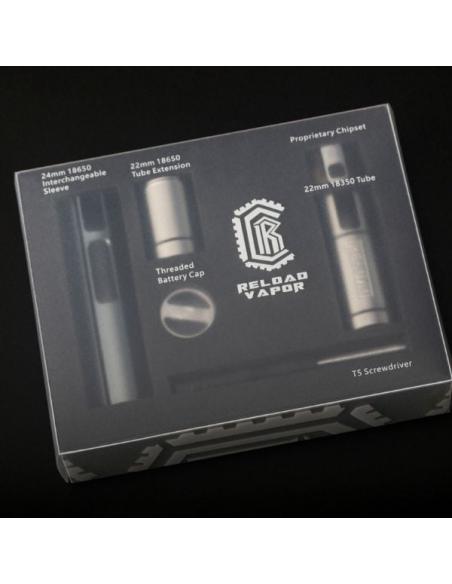

Package Contents
- 1 x Essential Mod 22mm electronic tube
- 1 x Extension for 18650 version
- 1 x 24mm polycarbonate sleeve
- 1 x Proprietary chipset
- 1 x Screwdriver
- 1 x User manual
Buy Reload Vapor USA electronic cigarettes on Svapoebasta
Reload Vapor electronic cigarettes are not only beautiful, but also functional and affordable: take a look at the complete catalog and choose the one that suits you!
- Category
- Electronic Cigarettes
- Brand
- Reload Vapor USA
- Typology
- Tube
- Battery Format
- 18350
18650 is the model number of a type of lithium-ion rechargeable battery. - Difficulty
- Difficult
- Maximum Power
- 61-100W
- Diameter
- 24 mm
