Luca Creations Duetto Genesis Mesh Atomizer 2.5ml
The Duetto by Luca Creations is a 22mm rebuildable Genesis atomizer that belongs to the category of devices that use a mesh coil instead of cotton to draw liquid from the tank located below the deck. Due to its nature, it is recommended to purchase it exclusively for experienced vapers who know how to handle such regeneration.

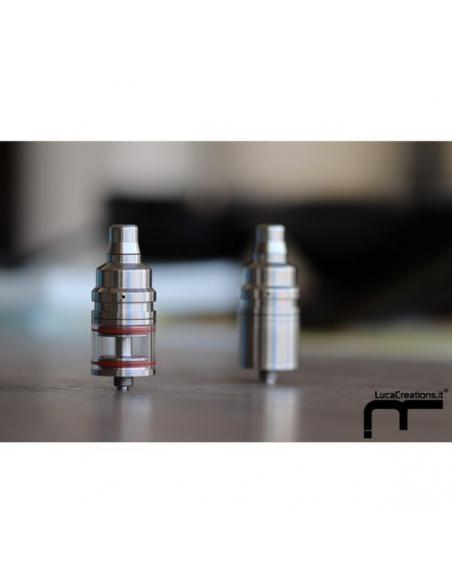

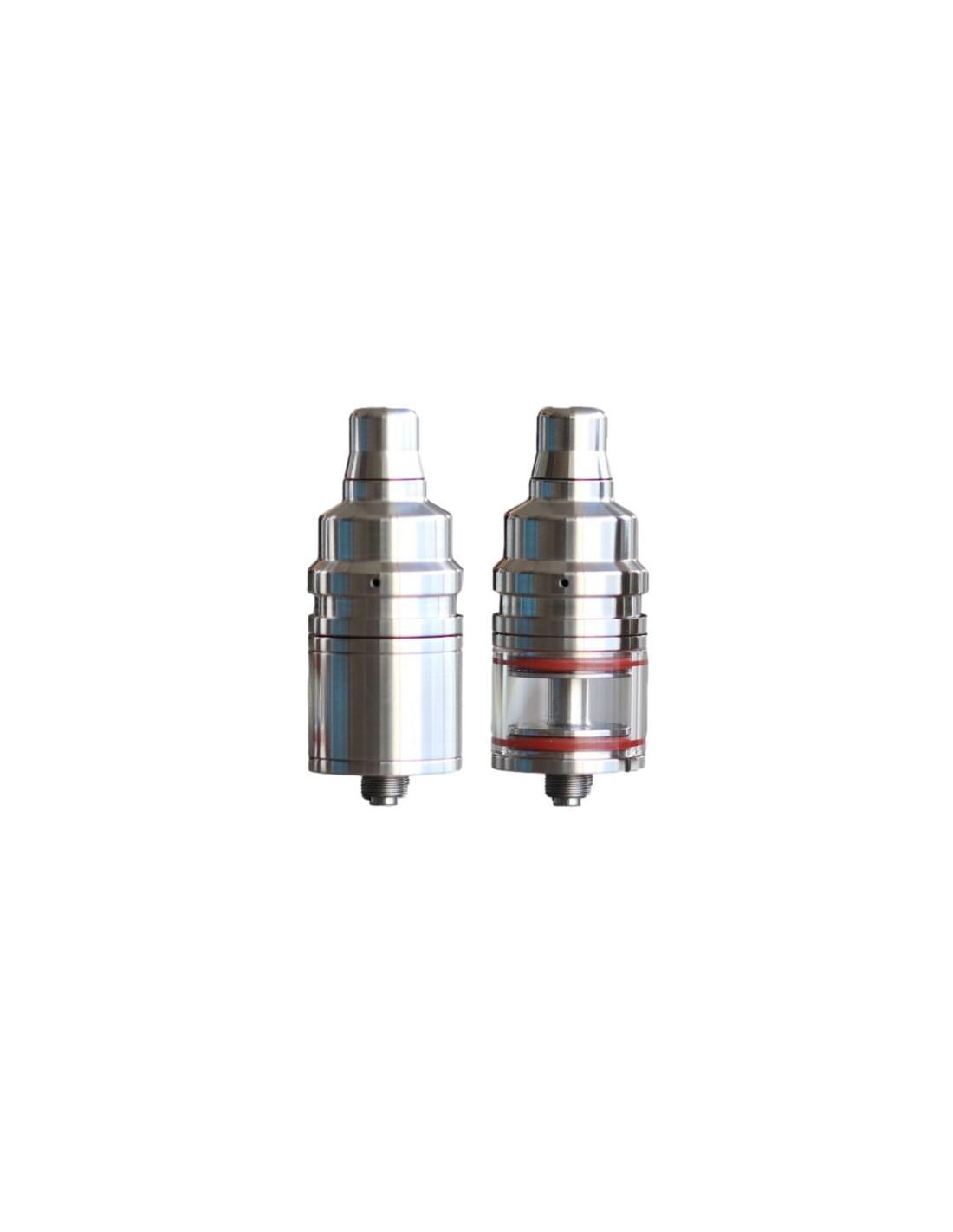

The atomizer is made of high quality stainless steel and is available in a polished or satin version depending on your preferences. The package includes both a pyrex glass tank and a steel tank, and in both cases the liquid capacity is 2.5ml.
The deck is a single coil with a 2.7mm mesh hole and the recommended regenerations by the modder are two:
- Electronic mods: #500 mesh with 4 wraps of 0.28mm (AWG29) resistance wire
- Mechanical mods: #325 mesh with 3 wraps of 0.25mm (AWG30) resistance wire
The Duetto comes with a stainless steel 510 drip tip and a single 1.2mm air hole, which provides a pleasant restricted lung hit.
The 510 connector allows for installation on any box mod or tube with the same connection.
Austere, efficient, and with excellent flavor production: a must-have for old school vaping, definitely not to be missed.
Instructions for use
- Screw the atomizer onto a box mod with a 510 connection
- Remove the bell cap
- Prepare a coil as suggested by the modder and position it vertically in the deck, securing one lead with the side screw (hex) and the other on the central post of the atomizer
- Insert a mesh roll inside the coil, making it enter the central hole that leads to the tank
- Perform several dry burns to oxidize the mesh
- Fill the tank through the dedicated hole on the deck, located on the side opposite to the mesh hole
Technical specifications
- Type: Genesis mesh rebuildable atomizer
- Draw type: restricted lung hit (MTL)
- Materials: stainless steel
- Diameter: 22mm
- Liquid capacity: 2.5ml
- Liquid refill: top fill
- Drip tip: 510
- Connector: 510
- Deck type: single coil
- Airflow control: none (fixed airflow with single 1.2mm hole)
Package contents
- 1 x Duetto Luca Creations Atomizer with Pyrex tank
- 1 x Spare steel tank
- 1 x Spare o-ring kit
- 1 x Upper and lower insulator
- 1 x Hex key
